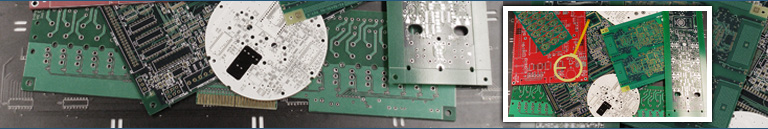

Printed Circuit Boards (PCBs)

Over 100K M2 of production capacity for single-sided and multi-layer printed circuit boards. Quick turn capability for prototype and low volume production. See www.nano.net.in for more information


  • 1-10 Layers
  • SMOBC, HAL, PISM, Pb-Finishes
  • Pb-free HAL, ENIG, & OSP Finishes
  • Thickness from 0.020 to 0.125 inches
  • Cu Cladding from 18 to 70 microns
  • FR4, FR2, CEM1, Al, Cu, High Dielectric Laminates
  • Universal BBT with Simultaneous Double-Sided SMD
  • 8 Mil Holes, 5 Mil Traces / Isolation
  • ISO Certified, IPC Class II or III, IPC 6012 / MIL STDs
  • Rigid, Flex, or Combined Constructions
  • SMOBC, HAL, Immersion Gold
  • LPI, wet film, dry film soldermask in a variety of colors
  • Various silk screen colors
  • Edge tab plating
  • Scoring or routing
  • 100% bare board test, flying probe and simultaneous top/bottom
  • High speed drilling/routing
  • PLC controlled plating lines

Services

  • Design review check
  • Photo plotting / gerber plot review
  • PCB design & layout
